Product Overview

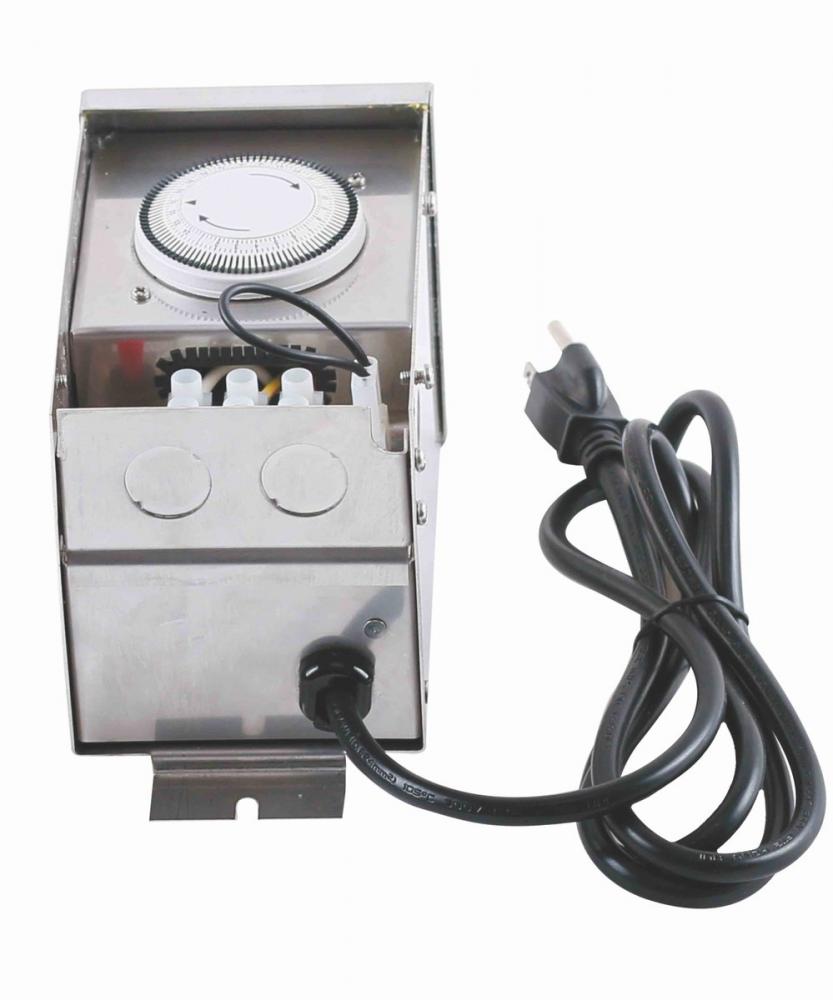

Low voltage landscape lighting transformer with stainless steel case and Single slipped door. 75 Watt Magnetic transformer that converts 120 volt ac to 12 volt AC to be used for landscape lighting. Voltage output taps are 12V and 15V. Rated for outdoor use, comes with a photocell. Knockouts are located on the side. There is a plug in.

Standard Information

Category:

Specialty Items

Subcategory:

Transformers

Finish:

Silver

Steel

Style:

Traditional

Option:

Outdoor

Wet Rated

Prop 65

Voltage:

100-120

Location Rating:

Wet Rated

Wattage:

75w

Refinement Options

Category:

Outdoor Lighting

Subcategory:

Outdoor Transformer

Finish:

Stainless Steel

Depth:

6.34

Introduction Date:

09/01/2017

Ship Carton Height:

7

Ship Carton Length:

11

Ship Carton Width:

7

Ship Weight:

7

Vendor Ship Method:

Small Parcel, Loose Box

Warranty:

1 Year Limited

Weight:

5

Auto Off Timer:

24 H

Billable Weight:

4

Canopy:

Yes

Compatible Transformer:

Electronic

Conduits Knockout Location:

Side

Controls Up to No. of Watts Load:

120 V/15 A

Cord Finish:

Black

Cord Length:

57.87

Country Of Origin:

China

Current Type:

AC

Housing Material:

Metal

Includes Timer or Photocell:

Yes

Input Voltage:

120 V/60Hz

Magnetic or Electronic:

Magnetic

Max Wattage:

75 W

Number of Boxes:

1

Outdoor:

Yes

Outlets for a Timer or Photocell:

Yes

Output Voltage:

0-12-15 V

Package Item Quantity:

1

Photocell Depth:

4.33

Photocell Finish:

Gray

Photocell Power Method:

1800 W Tungsten 1100 VA Ballast

Photocell Warranty:

5 Years

Photocell Width:

1.27

Plug In:

Yes

Power Method-Plug In:

Yes

Prop 65:

View

Prop 65 Chemical:

View

Prop 65 Description:

View

Safety Rating:

ETL Approved, UL Approved

Timer Height:

1.30

Timer Input Voltage:

AC 120 V

Timer Material:

PC

Timer Warranty:

5 Years

Timer Width:

2.44

Title 20:

No

Total Carton Weight:

7

Transformer Number of Taps:

3

Transformer Taps Voltage:

12 V, 15 V

Volume:

0.008832627

Black cord length measures 57 inches long

Maxium wattage is 75w

Product measures 3.78 inch long, 6.34 inch wide, 4.33 inch high
